Shelly Wave Multi channel setup in Fibaro HC3 when using ZWave Engine 2
If you experience issues with multiple channel (switch) status when using Shelly Wave (Shelly Wave 2PM for example) within Fibaro HC3 please refer to below:
The issue you're experiencing is caused by the gateway (HC3) incorrectly setting the lifeline. Fibaro gateways automatically assign the lifeline to a single channel, even for multi-channel devices. As a result, the reports triggered by the switch are sent to the root device instead of the appropriate endpoints.
To resolve this, please adjust the device's settings by assigning the multi-channel lifeline instead of the single channel one in the association settings. Please refer to below image showing this process

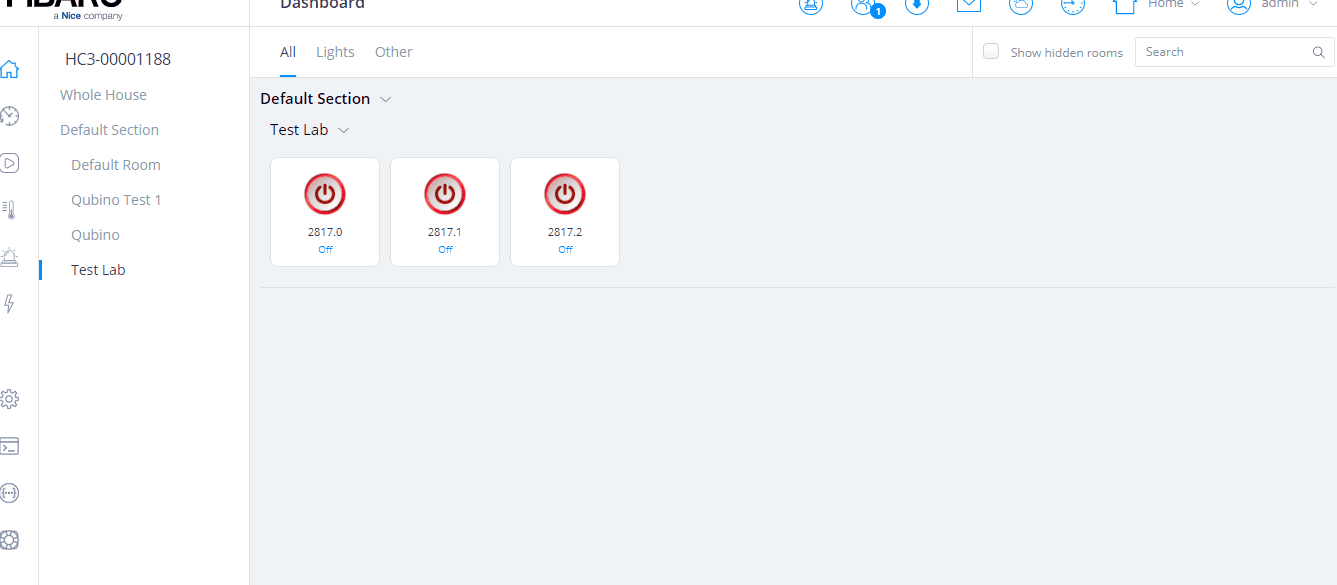

HC3 Setting Multi Channel Lifeline
